- Suitable for Chemical industry, Foods, Pharmacy
Product Description

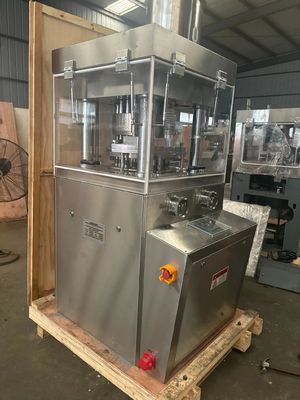

TIANHE ZP11 Bilayer Cleaning Sodium chloride Salt Powder Press Machine Dishwashing Tablet Application: ZP-11 Rotary Tablet Press is used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy. TIANHE ZP11 Bilayer Cleaning Sodium chloride Salt Powder Press Machine Dishwashing Tablet Features: 1 This machine is the single-pressing type equipped with 11 sets of punch dies which are mounted on the workbench and reciprocate upward and downward along the curved guide rail to realize the actions needed for tablet pressing.
2 The operational flow of this machine is: Material feeding, filling, tablet pressing, and tablet exporting, continuously.
3 This machine is powered by motors. Through frequency-converting speed adjustment and triangular belt wheel, the work-gear case can be driven, causing the main axle and turret to move clockwise.
4 Rolling friction is adopted in the pressing wheel whose working pressure can be adjusted based on different needs...Buffer device is also available to prevent the machine from being damaged due to mechanical impact and to elongate the machinery service life.
5 Periphery of the machinery working chamber is closed to meet the GMP requirements. Powder-absorbing orifice is installed on the bench surface to purify the working chamber.
6 Thickness of the pressed tablets, working pressure, filling amount, and rotational speed of the workbench are all adjustable. Detailed operations are directed on the operational panel to realize convenient adjustment and easy operation.
7 Material-feeding device is composed of hopper and moon-shaped grate material feeder. The hopper is mounted at top of the machine and can be dismounted. Large-amount single-variety production does not necessitate changing configurations of the machinery parts. The materials can be directly inputted into the feeder by pipes from the machinery top, making the operation very convenient.
TIANHE ZP11 Bilayer Cleaning Sodium chloride Salt Powder Press Machine Dishwashing Tablet Main Technical Specifications:
| Model |
ZP11 |
| Number of Station |
11 |
| Max Main Pressure (KN) |
100 |
| Max Tablet Diameter (mm) |
45 |
| Max Filling Depth(mm) |
45 |
| Max Tablet Thickness (mm) |
20 |
| Max Turret Speed (r/min) |
12 |
| Max Production Capacity(pcs/h) |
7920 |
| Motor Power (KW) |
5 |
| Overall size (mm) |
1100*1000*1900 |
| Machine Weight (kg) |
2000 |
Detailed Photos
|
Adjuster function
- Button control is easy to operate.
- PLC and touch screen, firendly and easy to operate,display main pressure,tablet ejection force,tablet thickness,filling depth,rotation speed and output.(optional)
- The machine support single layer & bilayer tablets (optional)
|
|
Electrical control cabinet
- Adopting an integrated electrical control box to make the machine beautiful and prevent dust enter.
- All the drive devices are located inside the machine so keep the machine clean.
- It can adopt Delta PLC & Siemens Touch Screem.(optional)
|
|
- With power switch.
- Blue socket connected to Tablet Deduster for two sides of the machine.
- Red socket connected to main power.
|
|
- Blue socket connected to Tablet Deduster.
- Red socket connected to Dust collector.
- With emergency stop switch.
|
|

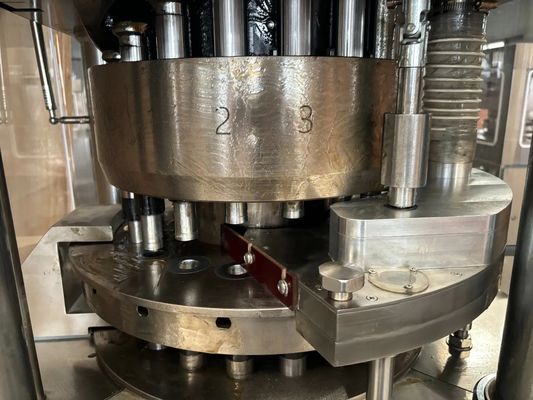

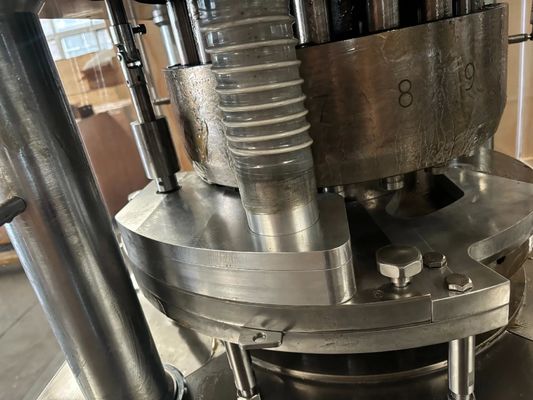

Turret 's structure and material
- The turret adopt two parts combined.
- The material used for the turret is HT300.The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant.
- It can adopt force feeder to improve material flowing for good quality tablets.(optional)

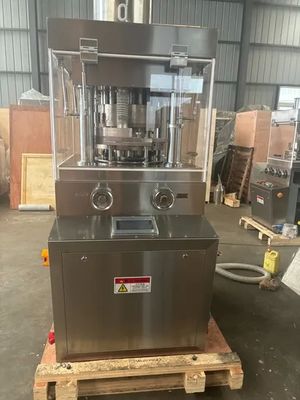

Adopt transparent windows,tableting state can be observed cleanly.The windows can be opened,cleaning and maintenance is easy.
The machine conforms to GMP. |
|

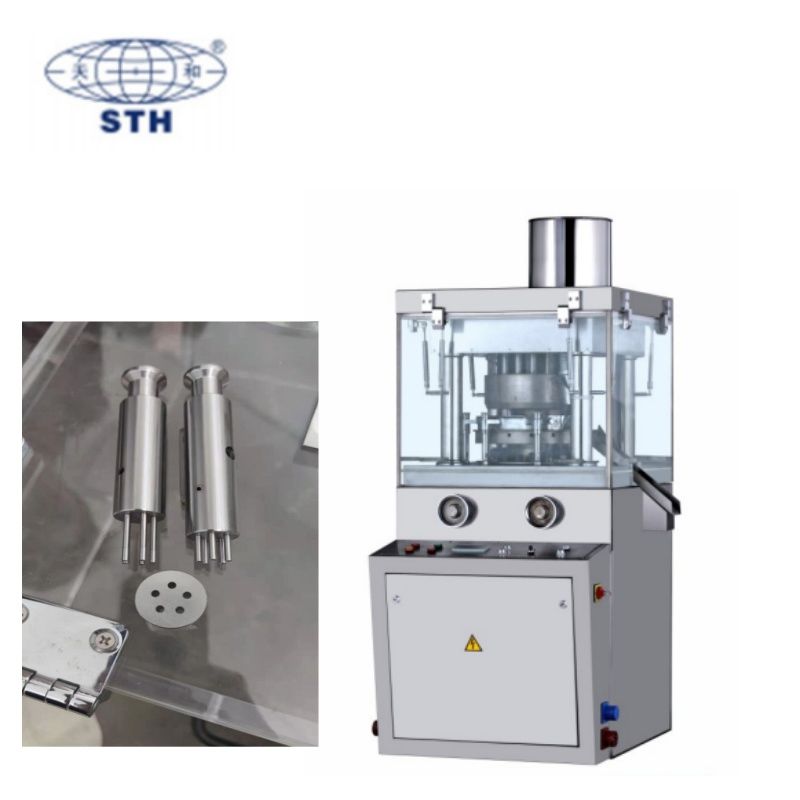

Punches & dies( Customization according to customer's requirements)
- We can make it all kinds of punches and dies,such as round,irregular,shallow concave,deep concave,bevel edged,detachable,single tipped,multi tipped,chrome plated or carbide ones.
- Material(optional): S7/D2,DC53,
6CrW2Si,GCr15 etc.
- The machine can support to make two-color tablets,ring shape tablets.(optional)
|
Packaging & Shipping
1. Wooden packaging meets export packaging standards.
2. Packaging is free of charge.
3. The delivery time is 15-45 working days.
4.The transportation methods can be SEA,AIR and EXPRESS.

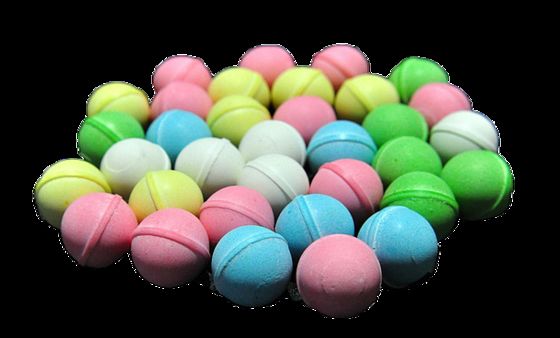

Tablet samples & Moulds
Certifications
After Sales Service
1. Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. We dispatch our engineer to customer factory to set up and run the machine.
3. We will provide our customers with good quality,good serivce,good price and good friendship.
