상하이 티안헤 제약 기계류 주식회사.
| 모델 번호: | GZP570 (61) | 기계 자료: | 탄소강, 스테인레스 스틸 |
|---|---|---|---|
| 숫자 스테이션: | 61 | 맥스 메인 압력: | 100kn |
| 맥스 프리 압력: | 40kn | 최대 생산 능력: | 439200 PCS/H |
| 모터 파워: | 11 kW | 최대 태블릿 직경: | 라운드 태블릿 : 13mm, 불규칙 정제 : 16mm |
| 최대 충전 깊이: | 15mm | 최대 태블릿 두께: | 6mm |
| 맥스 포탑 속도: | 60개 Ｒ / 분 | 전체 크기: | 1420*1200*1850 mm |
| 기계 무게: | 3500kg | 툴링 표준: | BB |
| 포탑 재료: | HT300 & 2CR13 | ||
| 강조하다: | GMP 21 CFR Part 11 High Speed Tablet Press,61 Stations Rotary Tablet Press Machine,439200 PCS/H Pharmaceutical Tablet Press |
||
This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-61 |
|---|---|
| Number Stations | 61 |
| Tooling Standard | BB |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | Round Tablet: 13 | Irregular Tablet: 16 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 4,392,000 |
| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |

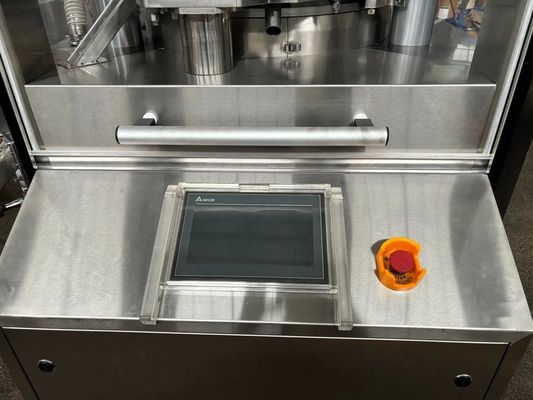

Handwheel-free control with automatic adjustment of main pressure, pre-pressure and filling volume via touch screen.
Features international brand components including Delta and Schneider.
11kw ABB motor with high-precision reducer for stable, high-torque power output.
Stable installation with double blade wheel feeding disc for excellent material adaptation and consistent powder filling.
