High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

중국 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체 High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 협력 업체

큰 이미지 :  High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

제품 상세 정보:

인증: CE, GMP, ISO, EAC

결제 및 배송 조건:

최소 주문 수량: 1
가격: 60000
접촉
상세 제품 설명
모델 번호: GZP570 (65) 기계 자료: 탄소강, 스테인레스 스틸
숫자 스테이션: 65 맥스 메인 압력: 100kn
맥스 프리 압력: 40kn 최대 생산 능력: 468000 PCS/h
모터 파워: 11 kW 최대 태블릿 직경: 라운드 태블릿 : 11mm, 불규칙 정제 : 13mm
최대 충전 깊이: 15mm 최대 태블릿 두께: 6mm
맥스 포탑 속도: 60개 Ｒ / 분 전체 크기: 1420*1200*1850 mm
기계 무게: 3500kg 포탑 재료: HT300 & 2CR13
메인 모터: 11kW (ABB)
강조하다:

65 Stations Rotary Tablet Press

,

40kN Pre-Pressure High Speed Tablet Press

,

11kW Motor Power Pharmaceutical Tablet Press

Fully Automatic Lubrication System High Speed Tablet Press with Force Feeder
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 0

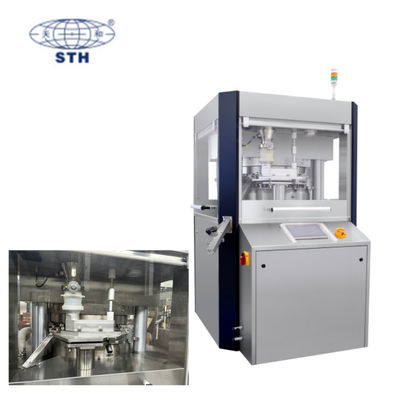

Product Overview

The GZP570-65 High Speed Rotary Tablet Press Machine is a double-side rotary tablet press designed to press granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.

Key Features
  • Advanced pressure system with double pressure forming (main pressure and pre-pressure) for precise tablet weight and hardness control
  • High-speed turret operation with maximum output of 450,000 tablets per hour
  • Precision pressure monitoring system with emergency stop protection
  • Automatic lubrication system for reduced noise and extended component life
  • Programmable controller with color touch screen interface for intuitive operation
  • Comprehensive safety protection functions including pressure overload and door interlock
  • Stable forced feeding device with double impeller feeding plate for consistent material flow
  • High-strength frame structure with 100KN main pressure capacity
  • Premium material construction including military-grade copper track and Japanese-cast components
  • Precision machining of critical components for optimal performance
  • High-precision worm gear box for smooth, quiet operation
  • Special lubricating oil chamber for reduced wear on punch rods
Technical Specifications
Model GZP-65
Number Stations 65
Tooling Standard BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round Tablet: 11 | Irregular Tablet: 13
Max Filling Depth (mm) 15
Max Tablet Thickness (mm) 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 468,000
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
System Components
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 1
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, output counter
  • 3-level management authority
  • Electronic signature CFR21 compliant
  • Remote access capability
  • Single value pressure display
  • Formula management system
  • Handwheel-free operation with intuitive interface
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 2
Electrical System

Utilizes international brand components including Delta and Schneider for reliable performance.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 3

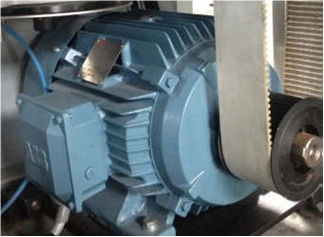

Main Motor
  • Powerful 11kw ABB motor
  • High-precision reducer for stable torque output
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 4
Automatic Lubrication System

Dual lubrication system with oil for punches and tracks, and grease for shafts and bearings.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 5
Turret Structure
  • Three-part structure design
  • HT300 & 2Cr13 materials with hardened surface layer
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 6
Force Feeder System

Directly mounted on main body for stability, featuring double blade wheel feeding disc for strong material adaptability and consistent powder filling.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 7
Force Feeder Hopper

Special hopper design with rotary valve for precise powder flow control.

Packaging & Shipping
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 8
  • Export-standard wooden packaging included
  • Delivery within 15-45 working days
  • Multiple shipping options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services available with all new machine purchases
  • On-site engineer support for setup and operation
  • Comprehensive technical support and training
Certifications
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 9
Company Profile
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 10

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience, exporting to more than 70 countries.

As a high-technology enterprise, we handle all processes from casting to metal machining and final assembly. We are committed to quality control and customer satisfaction, offering customized solutions based on detailed requirements analysis.
