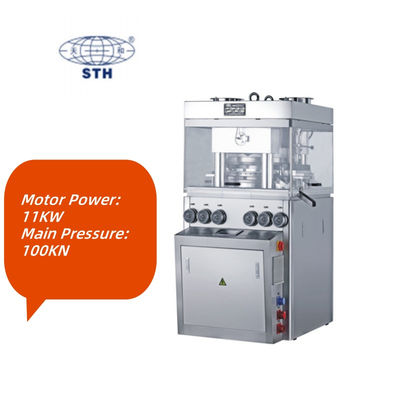

GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity
상세 제품 설명
| 모델 번호: |
GZP55 |
재료: |
스테인레스 스틸 |
| 주요 압력: |
100kn |
프리 압력: |
20kn |
| 제어 시스템: |
PLC 및 터치 스크린 |
피더 장치: |
강제 피더 |
| 윤활 시스템: |
자동 윤활 시스템 |
모터 파워: |
11kw |
| 최대 태블릿 직경: |
25mm |
생산 능력: |
396000pcs/h |
| 맥스 포탑 속도: |
60r/min |
최대 충전 깊이: |
15mm |
| 최대 태블릿 두께: |
6mm |
전체 크기: |
1370*1170*1800mm |
| 기계 무게: |
3200kg |
| 강조하다: |
100kN Main Pressure Rotary Tablet Press, 20kN Pre-Pressure Tablet Press Machine, 396000PCS/H Production Capacity High Speed Tablet Press |

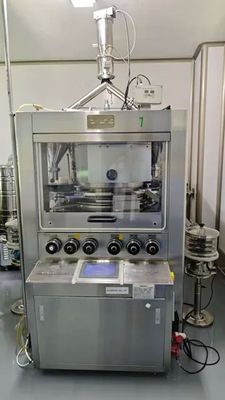

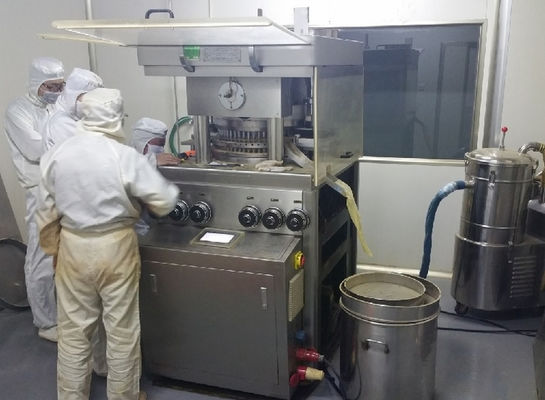

GZP55 Series High Speed Rotary Tablet Press Machine
Application
This double-sided rotary tablet press machine processes granular materials into round, irregular, or double-side engraved tablets. It serves pharmaceutical, chemical, food, and electronic industries.
Key Features
- High-speed operation with multiple punches and double press rollers for mass production

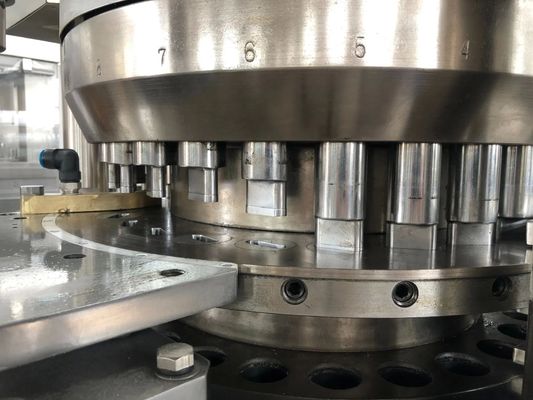

- Stainless steel construction with hardened rotary turret surface for wear resistance (GMP compliant)
- Precision tablet pressing system with twice compression forming for consistent weight
- Double impeller force feeder improves granule flow and filling accuracy
- Automatic central lubrication system extends machine lifespan
- Oil-proof, dust-proof, and noise-proof design
- Overpressure protection prevents punch damage
- PLC and touch screen control for easy operation
- Optional capability for double-layer tablet production
Technical Specifications
| Model | GZP-35 | GZP-43 | GZP-51A | GZP-51B | GZP-55 |
| Number of stations | 35 | 43 | 51 | 51 | 55 |
| Tooling Standard | D | B | BB | ZP | BBS |
| Max Tablet Diameter (mm) | 25 (round)
25 (irregular) | 18 (round)
19 (irregular) | 13 (round)
16 (irregular) | 13 (round)
16 (irregular) | 11 (round)
13 (irregular) |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 | 15 |
| Max Production Capacity (pcs/h) | 252,000 | 309,600 | 367,200 | 367,200 | 396,000 |
| Motor Power (kw) | 7.5 |
| Machine Weight (kg) | 3200 |

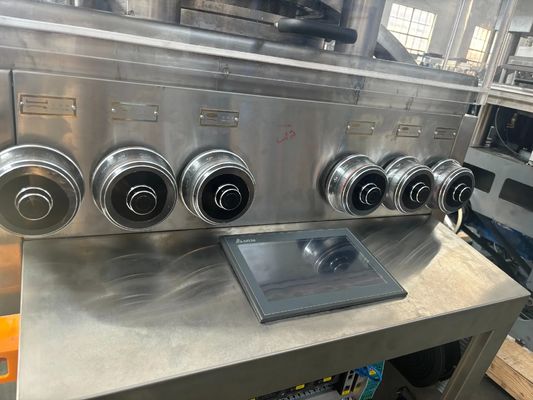

Delta 10-inch Color Touch Screen
- Displays real-time working pressure, speed, and output data
- 3-level management authority
- Optional electronic signature CFR21 compliance
- Remote access capability
- Single value pressure display
Electrical System
- Uses premium Chinese components (Delta, Delixi)
- Advanced tableting system with twice compression forming
Automatic Lubrication System
- Fully lubricates pressure wheel, track, and punching rod
- Includes machine cooling fan
Protection Functions
- Window switch
- Motor overload protection
- Voltage abnormal alarm
- High temperature alarm

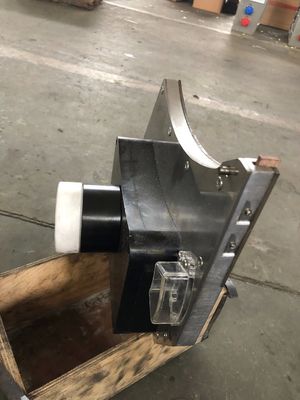

Feeder Device
- Double impeller type force feeder improves granule flow and filling precision
Punches & Dies (Customizable)
- TSM-Tooling standard compliant
- Available in various shapes: round, irregular, concave, bevel-edged, etc.
- Material options: S7/D2, DC53, 6CrW2Si, GCr15
Packaging & Shipping
- Export-standard wooden packaging (free of charge)
- 15-45 working days delivery time
- Shipping options: SEA, AIR, EXPRESS
Frequently Asked Questions
Q: Where is your factory located?
A: Our factory is in Shanghai's Chongming District. We welcome visits with prior arrangement.
Q: How can I verify machine suitability for my product?
A: Send samples for testing - we'll provide videos, photos, or live demonstrations.
Q: How can I trust your company for first-time business?
A: We recommend using Trade Assurance Service to protect your transaction.
Q: What after-sales support do you provide?
A: 1-year warranty with 24-hour technical support and lifetime service commitment.
Q: How to contact you?
A: Use the contact information on this page (email, WeChat, WhatsApp, phone).
