상하이 티안헤 제약 기계류 주식회사.
| Punch station: | 15/12/10/14 | 표준을 도구화하기: | ZP 툴링/EU 툴링 |
|---|---|---|---|
| 최대 주 압력: | 60KN | Max diameter: | 22mm |
| Max Thickness of Tablet: | 6mm | Max Filling Depth (mm): | 15mm |
| Max Turret Rotation Speed: | 50rpm/min | Machine Weight: | 300kgs |
| Application: | Rotary Tablet Press used in the pharmaceutical industry |
ZP15 EU-D Tooling Rotary Tablet Presss Machine Candy Medicine
ZP15 EU-D Tooling Rotary Tablet Presss Machine Candy Medicine Quick detail
- ZP tooling & EU tooling
- Stainless steel 316L
- Suitable for laboratory trials and small-scale production
- Used in the pharmaceutical, chemical, and food industries.

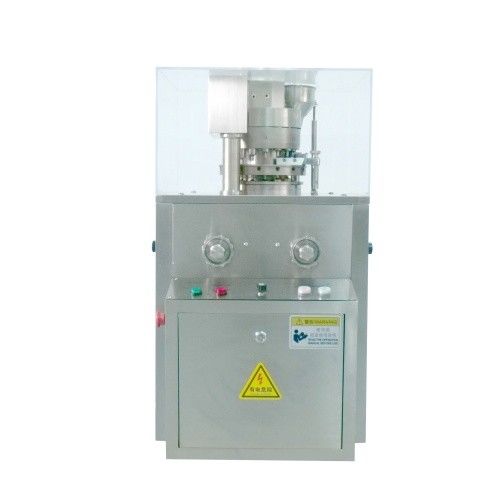

This machine is a new type of automatic rotary continuous tablet press, specifically designed to compress granular materials into tablets, capable of producing both round and irregularly shaped tablets. The machine features high torque and a reasonable structure, with an enlarged pressure roller shaft for smoother operation. It is suitable for laboratory trials and small-scale production, primarily used in the pharmaceutical, chemical, and food industries. The ZPT model is equipped with an upper punch with an oil ring, meeting international standards.
Characteristics:
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily removable parts for quick maintenance.
Main Technical Specifications:
| Model | ZP168-15 | ZP168-12 |
ZPT168-10 D |
ZPT168-14B | ZPT168-15 | ZPT168-12 |
| Punch Type | Φ22×115 | Φ26×115 | Φ25.35×133.6(D) | Φ19×133.6(B) | Φ22×133.6 | Φ26×133.6 |
| Numbers of Punch Stations | 15 | 12 | 10 | 14 | 15 | 12 |
| Max Pressure (kN) | 60 | |||||
| Max Tablet Diameter (Round shape, mm) | 13 | 20 | 22 | 16 | 13 | 20 |
| Max Filling Depth (mm) | 15 | |||||
| Max Thickness of Tablet (mm) | 6 | |||||
| Max Turret Rotation Speed(r/min) | 50 | |||||
| Max Production Capacity (tablets/hour) | 45000 | 36000 | 30000 | 42000 | 45000 | 36000 |
| Electrical Supply Parameters | 2.2 | |||||
| Dimensions (mm) | 850*600*1100 | |||||
| Weight (kg) | 300 | |||||
Our Service
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
